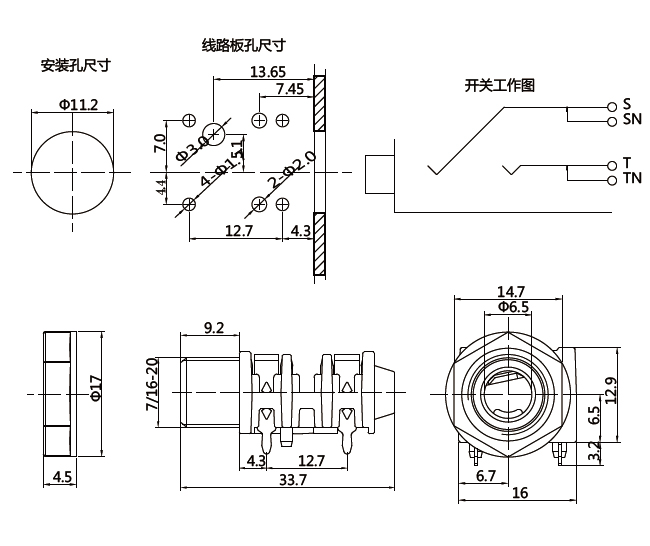

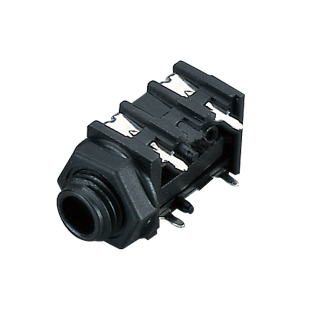

LC3096
Installation method: rear loading
The thickness of the panel:≤2.0mm
Elastic contact:bronze、tin plating
Service life: 1000 times
Insertion force: 10- 20N
Contact resistance: ＜ 10mΩ
Insulation resistance: > 1000MΩ
